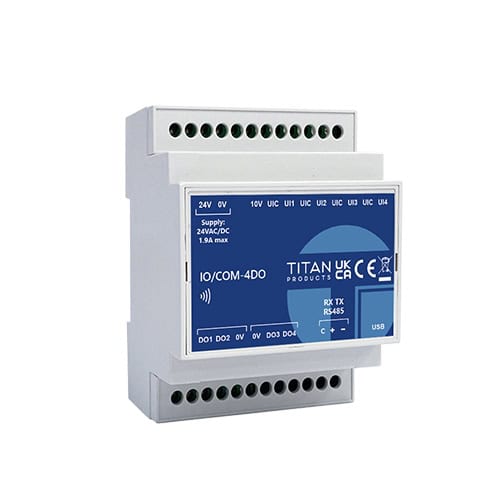

Designed for HVAC and BMS markets, the Smart IO modules can be used for a wide range of monitoring, control and positioning applications.
The 4 x universal inputs can be used to monitor:
• Resistive inputs
• 0-10V, 0-20mA active inputs
• Digital ON/OFF contact switches
• Digital pulsed inputs
The DIN Rail modules offer extremely simple set up via our Commissioning App or intuitive PC / Laptop program (supplied separately) that allows each device to be addressed for the network, universal inputs to be configured and read, the device outputs to be written to and read, and for the device, information to be viewed.

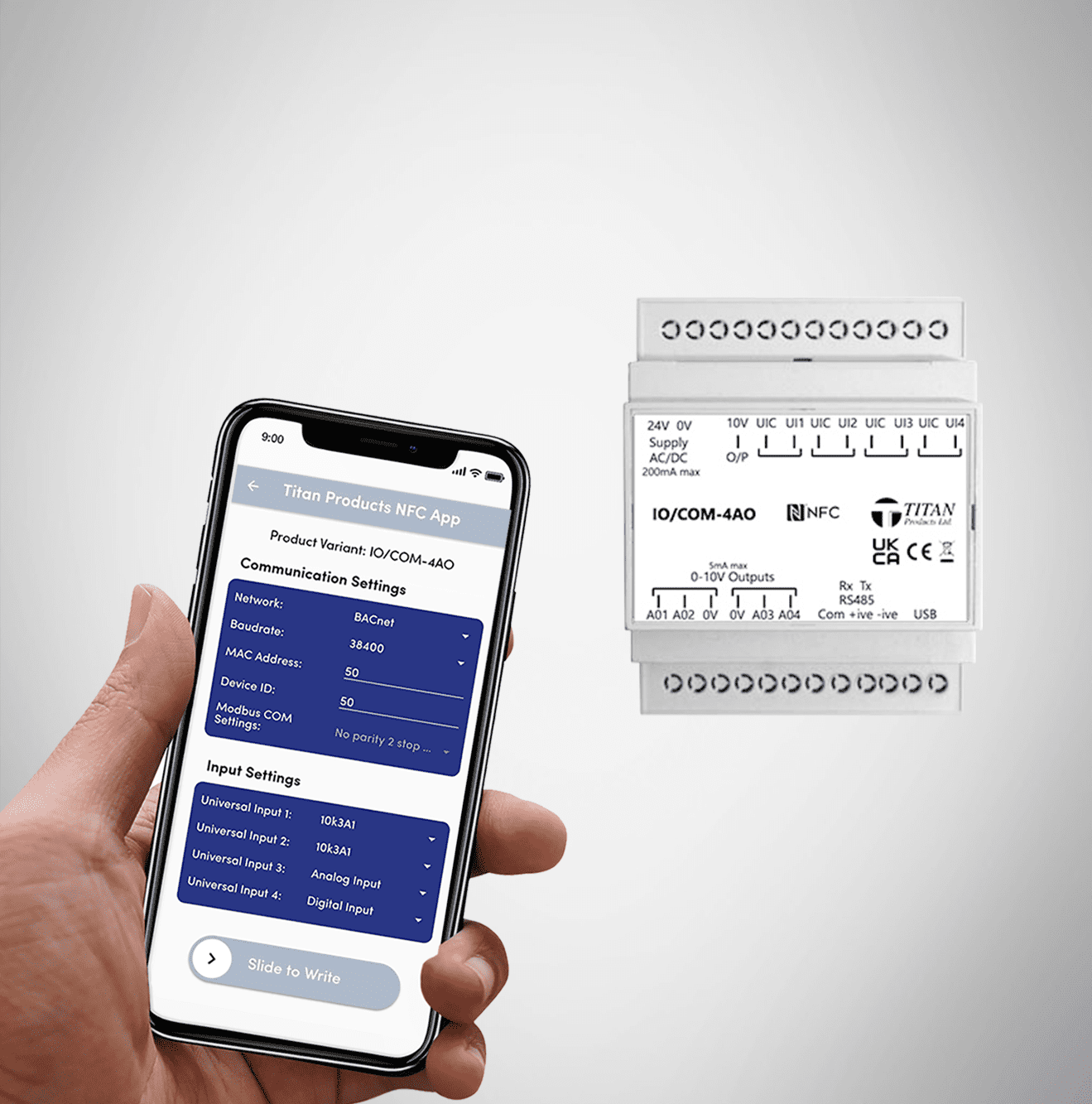

Smart IO modules are supplied with Near Field Communication (NFC) capabilities as standard. This allows the IO modules to be set up via the Titan Commissioning App with the desired setup passed to the Smart IO module instantly, with or without power applied to the units.
Key Benefits:
- BACnet MS/TP and Modbus Communications
- Flexible universal inputs: 4
- Outputs options: Relay, 24V Digital or 10V Analogue (variant dependent)
- Simple setup via PC configuration tool
Variants:
| IO Module Type | Inputs | Outputs |
| IO/COM-4AO | 4 x UI | 4 x Analogue |
| IO/COM-4DO | 4 x UI | 4 x Digital |
| IO/COM-4R | 4 x UI | 4 x Relay |
Quantity Price Breaks:
- 10+ units = 5% discount
- 25+ units = 10% discount
Got a question? Call us on 0161 406 6480 or email sales@titanproducts.com266
