Battery powered CO2 Indicator with LED HALO

CO2 sensors with LED indicators offer extremely effective visual guidance for carbon dioxide levels, a key indicator of the air quality. They indicate the need to ventilate the space or open windows

Depending on the CO2 levels in the space the LED HALO will flash to let the occupant know that levels are rising.

The CO2 indicator uses a low power consuming CO2 cell, giving it the best possible battery life and because it uses the 3.6V, 2600mAh lithium thionyl chloride battery, you do not need to wire the unit, making it extremely easy and cost effective to install.

LED HALO flashing green

CO2 levels below 800ppm: Within recommended levels, indicating air quality and ventilation is good.

LED HALO flashing amber

CO2 levels 800 - 1000ppm: As CO2 levels begin to rise amber will indicate action is required soon as air quality worsens.

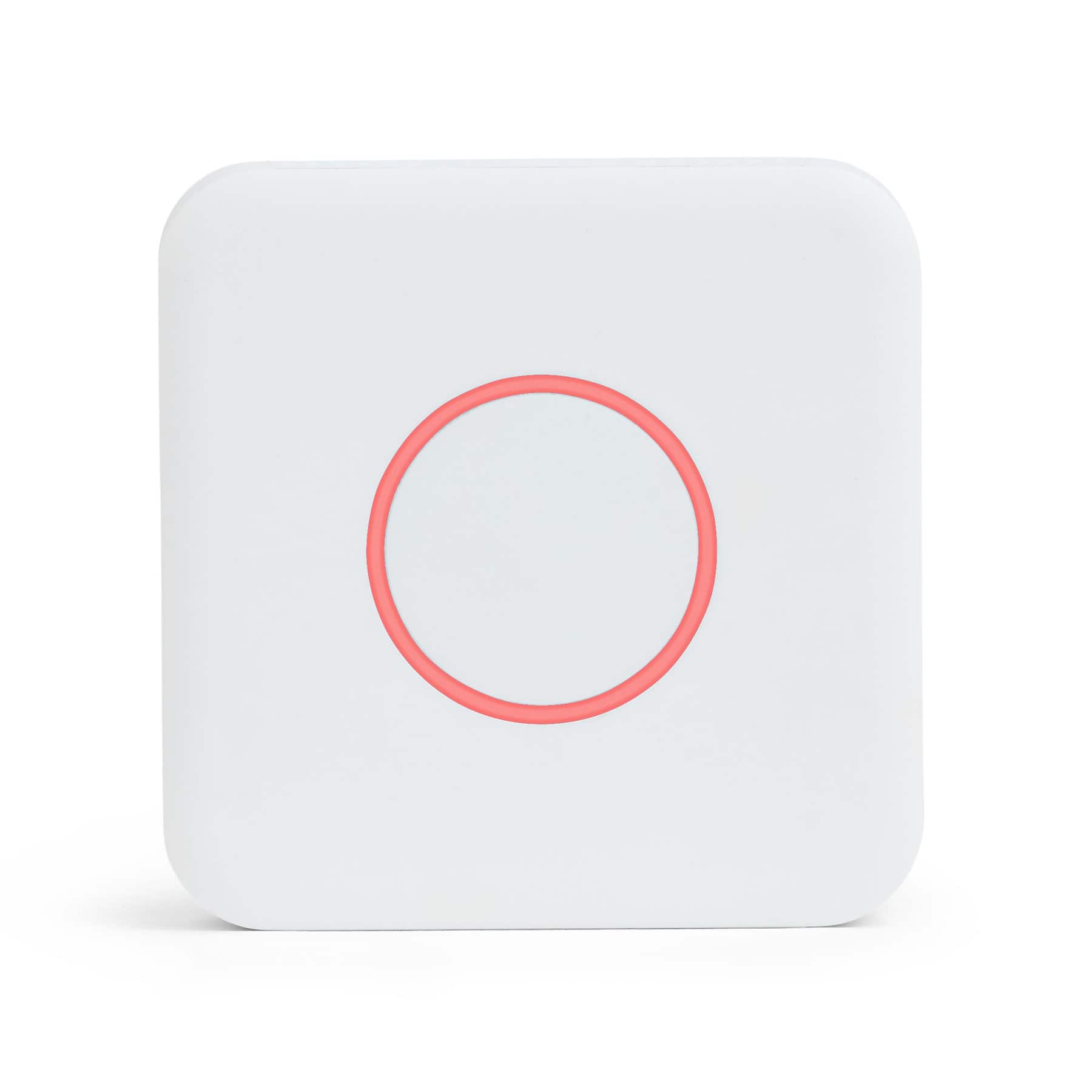

LED HALO flashing red

CO2 levels above 1000ppm: Indicates CO2 is above the recommended levels. Increased ventilation is required such as opening a window,

The Benefits of Using a CO2 Monitor

Prevent dangerously high levels of CO2 exposure: Carbon dioxide is life threatening at exceptionally high levels, and even at moderate levels it can have a detrimental impact on health. When CO2 levels are between 2000 and 5000 ppm, people often experience headaches, lethargy, nausea and increased heart rate. Even at 1000 ppm, it is common for people to complain of drowsiness.

Improve performance of workers and students: Research has proven that high CO2 levels have a detrimental impact on human performance. One study in particular from the Harvard Chan School of Public Health found that cognitive skills reduced by 21% when CO2 levels were increased by just 400 ppm. It also discovered that when CO2 concentrations were as high as 1400 ppm, the gas reduced cognitive function by 50%. For schools and universities who want to ensure their students thrive and businesses who want to get the best out of their employees, maintaining healthy CO2 levels is vital. By using a CO2 monitor, it is easy to identify when carbon dioxide levels are creeping up high enough that it might impact the performance of staff or students.

Monitor COVID-19 infection risk: The CO2 levels in space are an indicator for exhaled breath, in which there could be airborne infectious diseases such as COVID-19. When a monitor identifies high levels of CO2, it is a clear indication that the area has inadequate ventilation and, therefore, an increased risk of COVID-19 transmissions if an asymptomatic person is using the space.

Optional mounting stand

The stand adds flexibility to the sensor location in the space without having to mount on the wall and makes the unit mobile.





  • Modern, slimline design
  • Simple and informative HALO LED indication for CO2 levels
  • Polygiene® anti-microbial product protection
  • Cable free, quick and simple installation
  • Battery powered, with a battery life of up to three years
  • Low power consuming CO2 cell for excellent battery life
  • Non-dispersive infra red (NDIR) CO2 Sensor
  • Ideal for working and learning environments
  • Designed and manufactured in the UK
