Meet the 710 Range

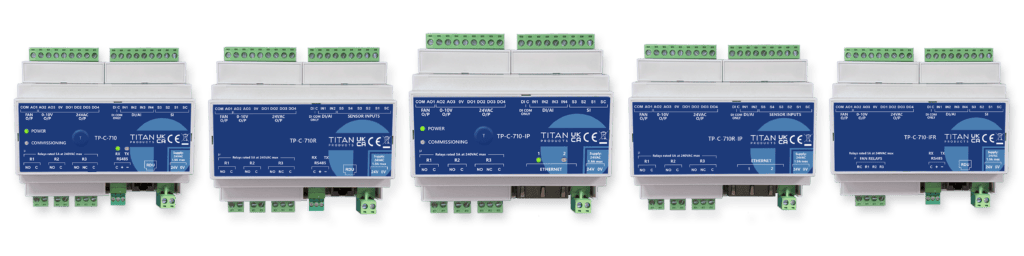

There are 5 controllers in the range, all designed for easy installation and simple commissioning. Quickly addressed and configured using our intuitive ToolBox platform, all feature flexible control options and choice of BACnet MS/TP or BACnet IP communications.
Commercial
The 710 range has an extensive library of control options built up and developed over time to provide all the features expected for reliable and flexible Fan Coil Control. From inputs covering condensate control, fan proving alarming and more, to output control options for wet and electric systems, to fabric protection and valve exercising routines, the 710 Fan Coil Controllers are the perfect pick for your application.
Residential
The TP-C-710R BACnet controllers provides the latest combined comfort control solutions for Fan Coil and Underfloor Heating applications.
An integral part of the Titan Residential solution the controllers provide embedded control for a number of fan coil and underfloor heating applications to cover living, bedroom and bathroom control.
Retrofits
The TP-C-710-IFR can be used as a standalone controller or part of a BMS.
The three interlocked fan relays are designed for retrofit applications where the fan coil fan requires three speed relay control.
Simplified Commissioning
AUTO MAC ADDRESSING
No manual addressing required to get your 710 controllers on the network. All TP-C-710 controllers are shipped with our innovative Auto Mac functionality. Controllers automatically address themselves with unique network addresses for visibility into ToolBox where they can then be addressed to the building requirements
SIMPLE INSTALL
The TP-710 controllers have small footprints, LEDs and pluggable terminals to make install easier than ever.
TITAN TOOLBOX
An all new commissioning platform with class leading workflows. Allows complete networks of controllers to be set up in minutes.
ToolBox Commissioning Platform
With the ToolBox platform, commissioning becomes a streamlined process. Controllers are discovered, addressed and commissioned in minutes. ToolBox enables engineers to quickly identify and configure controllers, effortlessly create and copy control profiles and fine-tune control functions. ToolBox places complete control in your hands, ensuring a seamless setup and optimal performance for the TP-710 controllers.
User Interface Options
At Titan, we offer an extensive selection of user interfaces designed to meet your needs. From 7” multi-zone touch screens to 4” zonal touch screens and Rotary options, our attractive user interfaces are engineered for versatility and ease.
Additionally, our comfort app provides remote control capabilities, giving the convenience to adjust comfort control from anywhere.
| Feature | TP-C-710-IP | TP-C-710 | TP-C-710-IFR | TP-C-710R-IP | TP-C-710R |
| Application | Commercial | Commercial | Commercial | Residential | Residential |
| BACnet Communications | IP | MS/TP | MS/TP | IP | MS/TP |
| Analogue/Digital Outputs | 3AO 4DO | 3AO 4DO | 3AO 4DO | 3AO 4DO | 3AO 4DO |
| Relay outputs | 2 x NO 1x changeover | 2 x NO 1x changeover | 3 (interlocked) | 2 x NO 1x changeover | 2 x NO 1x changeover |
| Digital / Analogue inputs | 4 | 4 | 4 | 2 | 2 |
| Sensor inputs | 3 | 3 | 3 | 5 | 5 |
| Fan Control | 0-10V | 0-10V | Relay | 0-10V | 0-10V |
| Electric heater control options | ✔ | ✔ | ✔ | ✔ | ✔ |
| 2 Pipe FCU control | ✔ | ✔ | ✔ | ✔ | ✔ |
| 4 Pipe FCU control | ✔ | ✔ | ✔ | ✔ | ✔ |
| Combined FCU & UFH control | ✔ | ✔ | |||
| Independent second zone of heating control | ✔ | ✔ | |||
| Bathroom towel rail control | ✔ | ✔ | |||
| High/Low limit protection settings | ✔ | ✔ | ✔ | ✔ | ✔ |
| Unoccupied options | ✔ | ✔ | ✔ | ✔ | ✔ |
