Window Actuator Positioning Module (IO/AD3W)

SKU: 105

£ 105.00

Window Actuator Positioning Module (IO/AD3W)

£ 105.00

SKU: 105

Designed to convert 0-10V control signals to 24VDC control signals for DC driven motors.

Clear

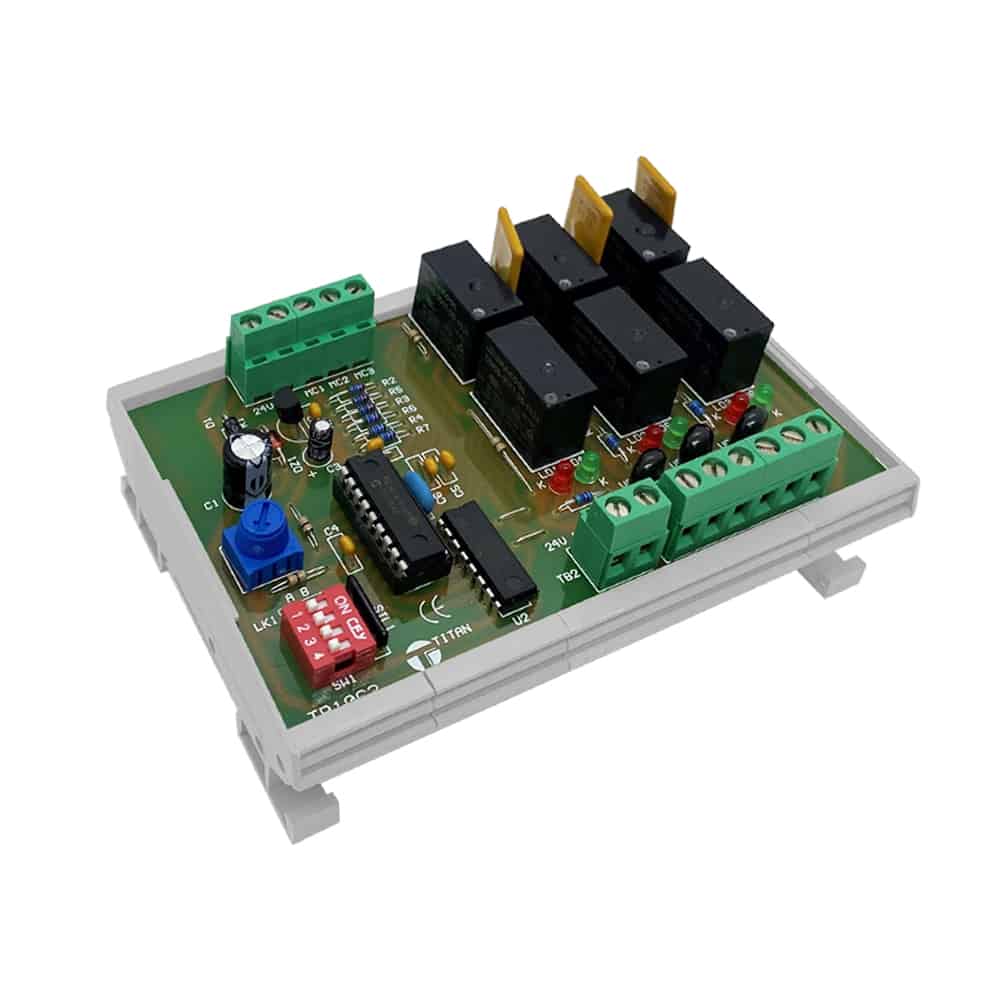

Our Window Actuator Positioning Module (IO/AD3W) is designed to convert 0-10V control signals to 24VDC control signals for DC driven motors, driving the natural ventilation actuators on louvres, windows and blinds to the desired position.

This positioning module is fully compatible with our BACnet Natural Ventilation Controllers and is available in 3 models, offering you 3 different drive time options:

  • 5-75
  • 20-100
  • 30-110 seconds

The maximum total current using 2 or 3 outputs on this module is 9 amps.

Key Benefits:

  • 24V AC/DC supply
  • Converts 0-10V to 24VDC
  • 3 different timing models available
  • 3 x forward/reverse motor control outputs (each 5 amp max, combined max must not exceed a total of 9 amps)

Quantity Price Breaks

  • 10+ units = 5% discount
  • 25+ units = 10% discount

Got a question? Call us on 0161 406 6480 or email sales@titanproducts.com

IO/AD3W Datasheet
