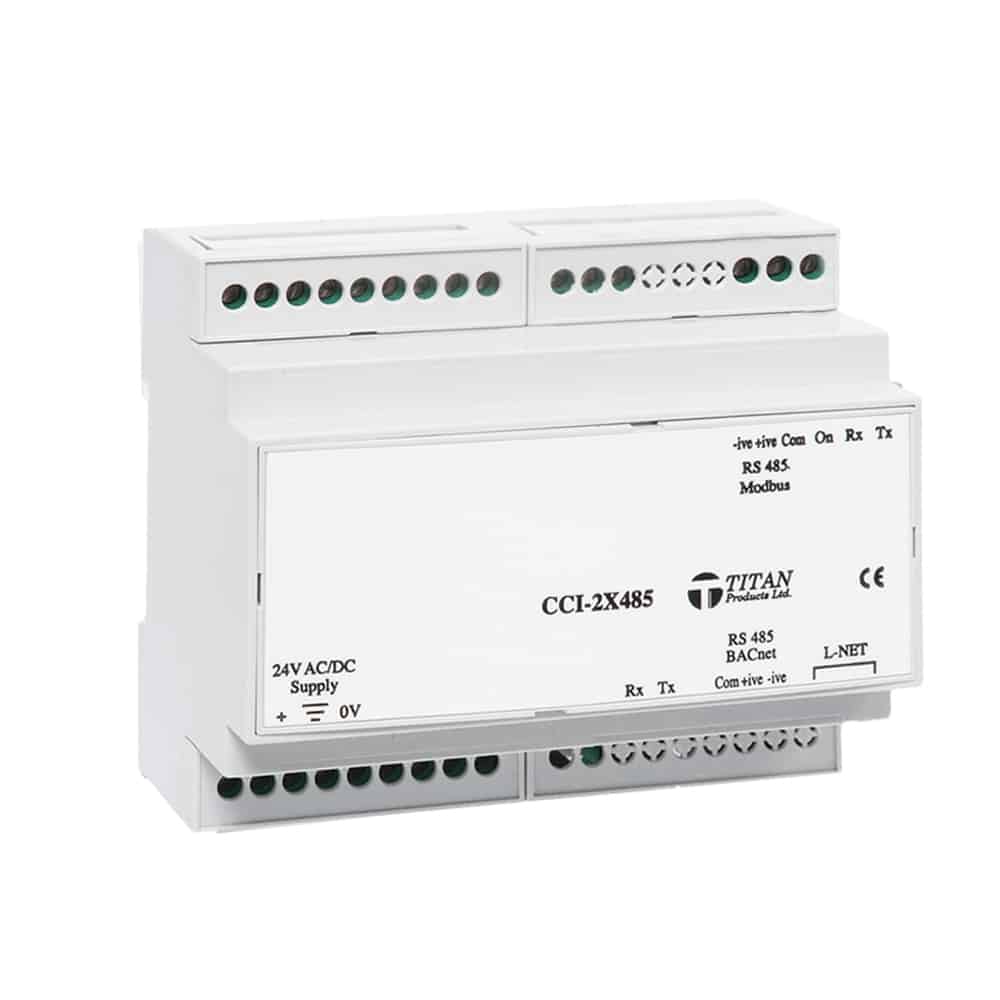

Modbus to BACnet Gateway (CCI-2X485) 24V Supply

SKU: 111

£ 140.00

Modbus to BACnet Gateway (CCI-2X485) 24V Supply

£ 140.00

SKU: 111

Modbus to BACnet Gateways from Titan Products

The BACnet gateways are designed to expose Modbus network data as BACnet MS/TP points. This Modbus to BACnet MS/TP mapping of objects is carried out through our own specific PC software provided with the Gateway. Once the mapping has been completed, it is then uploaded to our FPT-601 Field Programming Tool which allows the user to then upload the mappings onto the gateway.

In order to upload the mapping from a PC to the CCI gateway, a Titan Products FPT-601 is required.

Our BACnet gateway operates as a Modbus RTU-Master and 200 (150 intrinsic reporting) can support the following Modbus mapping in any combination:

  • Modbus discrete inputs to BACnet binary input objects
  • Modbus coils to BACnet binary value objects
  • Modbus input registers to BACnet analogue input objects
  • Modbus holding registers to BACnet binary value objects
  • Modbus holding registers to BACnet analogue value objects

Key Benefits:

  • Low cost
  • 24V AC supply
  • Modbus to BACnet conversion
  • Easy to use PC point mapping program
  • UK designed, developed and manufactured

Project Quantity Price Breaks available. Contact us now for prices.

Got a question? Call us on 0161 406 6480 or email sales@titanproducts.com

SKU_111_Modbus_BACnet_Gateway CCI-2X485
